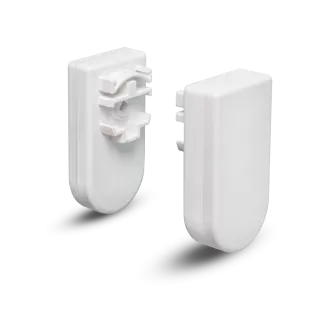

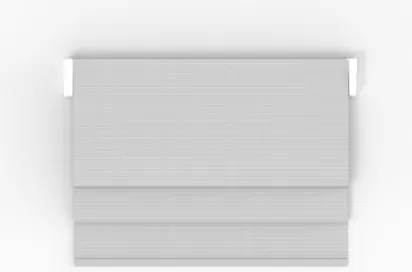

Chainless Roman End Control Unit
3433233-000001
Material: Plastic、Steel
Product Size (L*W*H): 8.2 * 4.3 * 3cm (L-side)、8.2 * 4.3 * 2.5cm (R-side)
Product Weight: 126g
Material: Plastic、Steel
Product Size (L*W*H): 8.2 * 4.3 * 3cm (L-side)、8.2 * 4.3 * 2.5cm (R-side)
Product Weight: 126g
Assembly Instructions
-
Step.1

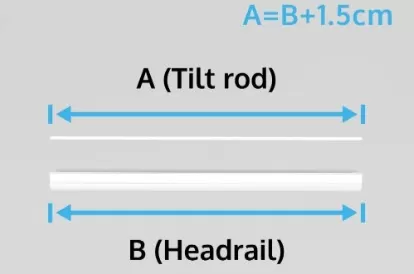

The tilt rod needs to be 1.5cm longer -
Step.2
Same as the assembly of regular roman blind. Insert the tilt rod into the cradle first , and then put it into the head rail. After that, let the cord be attached to the fabric.
-
Step.3

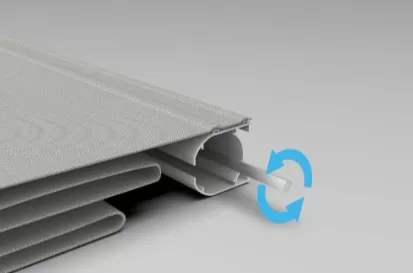

Be sure to follow the direction as left picture when turning the rod to collect the cord

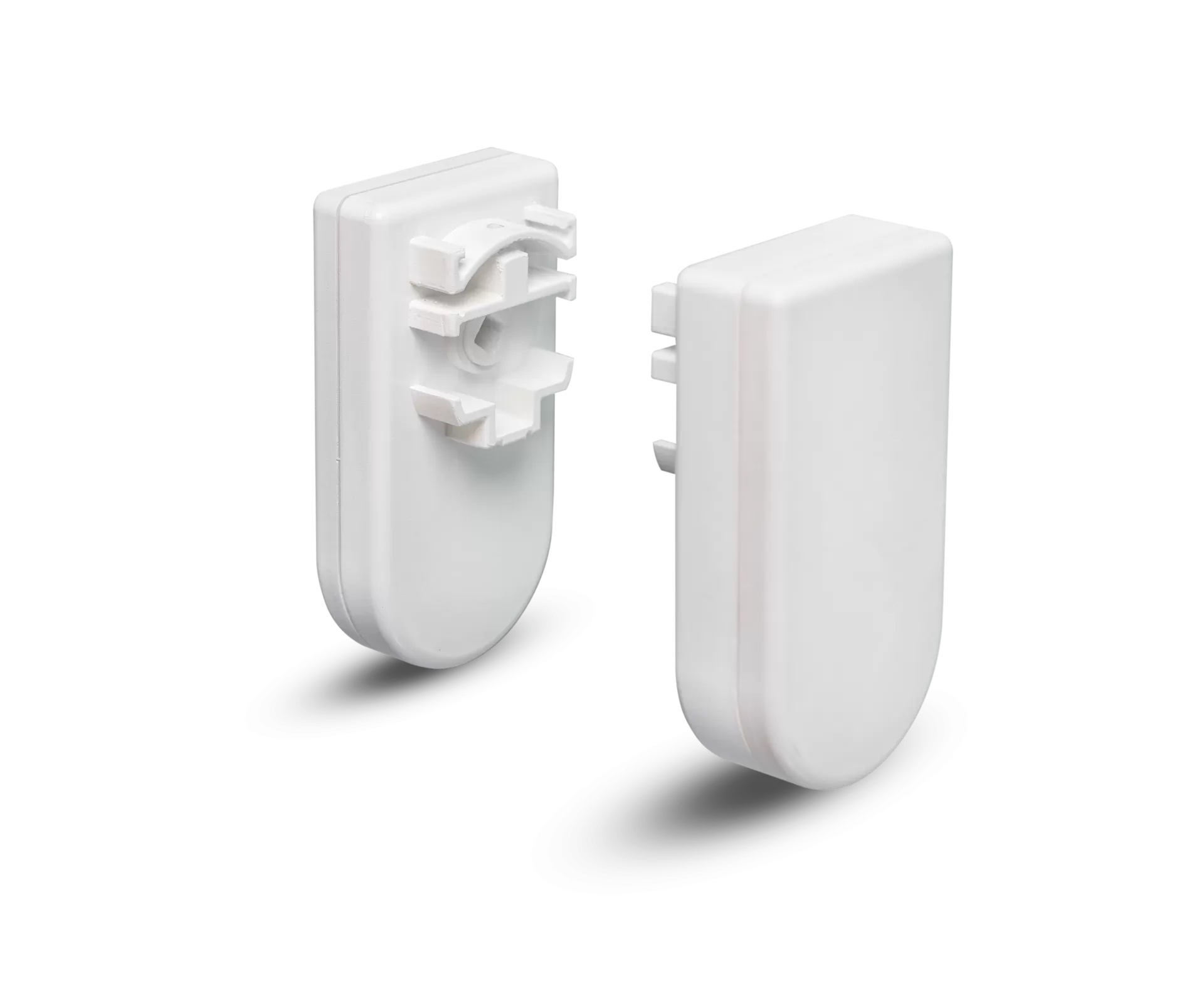

Note: The thickness is different between left and right end control unit. The left one is thicker as below picture.
-
Step.4

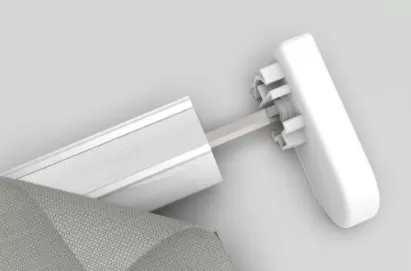

After the cord is collected, pull out the tilt rod a bit for inserting the left end control unit. -

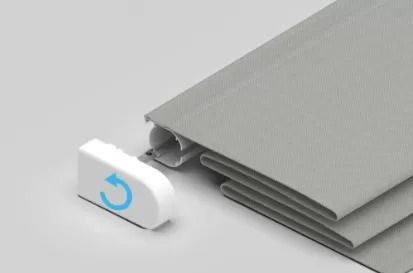

Step.5
Start turning the rod counterclockwise 2~3 times, which is to let the fabric be close to the rail. Put the end control unit into the rail afterwards.
-
Step.6
Pull out the tilt rod a bit for inserting the right end control unit.
-

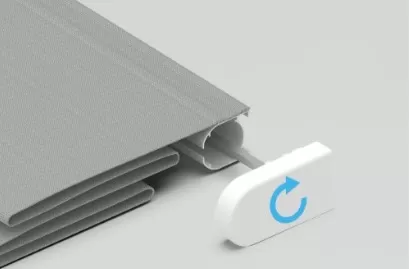

Step.7
Start turning the rod clockwise 2~3 times. Put it into the rail afterwards. -
Step.8
Done
-

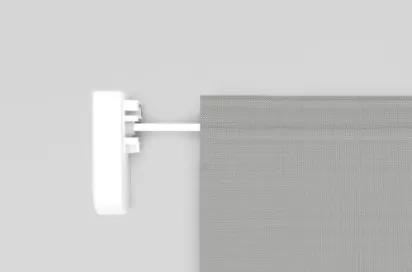

You could use Velcro to prevent the light leakage in blinds -

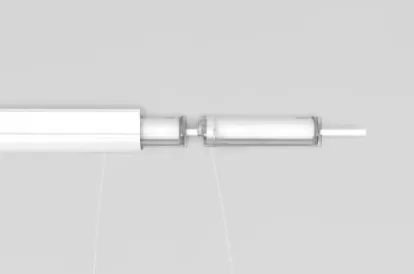

There is an eyelet in the cradle as the blue mark in the picture. The design is to prevent the cradle from being worn out by the cord.
